Mechanical
|
|
|---|---|
|
Solar Cells
|
PERC Mono crystalline
166x83mm
|
|

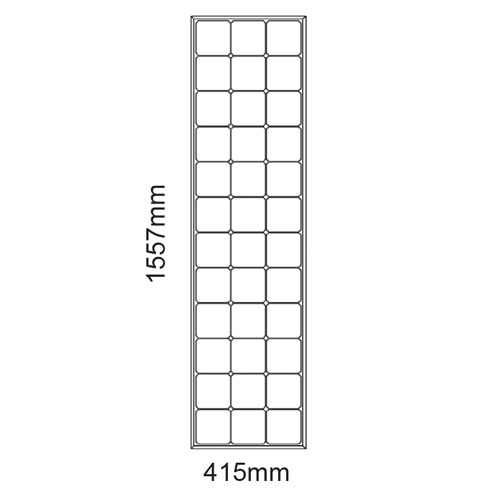

Dimensions
|
1557x415x35mm
|
|
Front Glass
|
3.2mm AR coating
tempered glass, low iron
|
|
Weight
|
23 Kg
|
|
Output Cable
|
4.0mm2, cable length
300mm
|
|
Connector
|
MC4 Compatible
|
|
Junction Box
|
IP 68, 3 diodes
|
|
Frame
|
Anodized aluminium alloy
|
|
Performance
|
|
|---|---|
|
Max Power
|
105W
|
|
Max Power Tolerance
|
0~+3%
|
|
Max Power Voltage
|
17.5V
|
|
Max Power Current
|
6.0A
|
|
Open-Circuit Voltage
|
22.0V
|
|
Short-Circuit Current
|
6.45A
|
|
Module Efficiency
|
15.75%
|
|
Temperature
|
|
|---|---|
|
Isc Temperature Coefficient
|
+0.05%/°C
|
|
Voc Temperature Coefficient
|
-0.30%/°C
|
|
Pmax Temperature Coefficient
|
-0.35%/°C
|
|
Nominal Operating Cell
Temperature (NOCT)
|
45±2°C
|
|
Operating
|
|
|---|---|
|
Max. system voltage
|
DC1500V
|
|
Limiting reverse current
|
20A
|
|
Operating temperature range
|
-40°C~85°C
|
|
Max static load front (eg. snow)
|
5400Pa
|
|
Max static load back (eg. wind)
|
2400Pa
|
|
Max. hailstone impact
(diameter/velocity)
|
25mm /
23m/s
|
